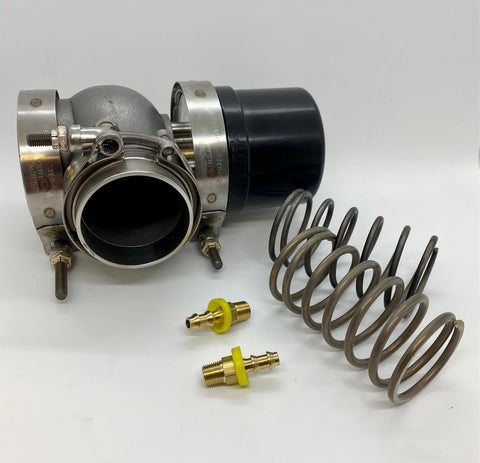

JGS Precision 50mm Wastegate

- Compact for complex installs
- All 300 series SS/ T6 Aluminum construction
- Anti creep geometry
- Silicone O-ring Piston Actuator, for long life and easy service

- V-band retained actuator for quick and simple spring changes
- Nickel Aluminum Bronze Valve Guide
- Floating valve seat
- Externally clock-able 1/8” NPT side pressure ports
- 2” V-band Connections, Inlet compatible
with many other V-band wastegates
-SS flanges, clamps, and hose connections included

All JGS wastegates are hard anodized black!

Made in the USA, not another cheaply made imported copy!

Engineered, Tested, Machined, and Assembled here at JGS Precision Turbo.

Built to survive over 1 million full cycles at boost pressures of 40+psi

The JGS500R wastegates includes low, (4-5psi est.), medium (6-7psi est.) and high (12-13psi est.) springs

TK260R
